Military Simplex Basket Strainers

Click & drag to rotate • Scroll to zoom • Right-click to pan

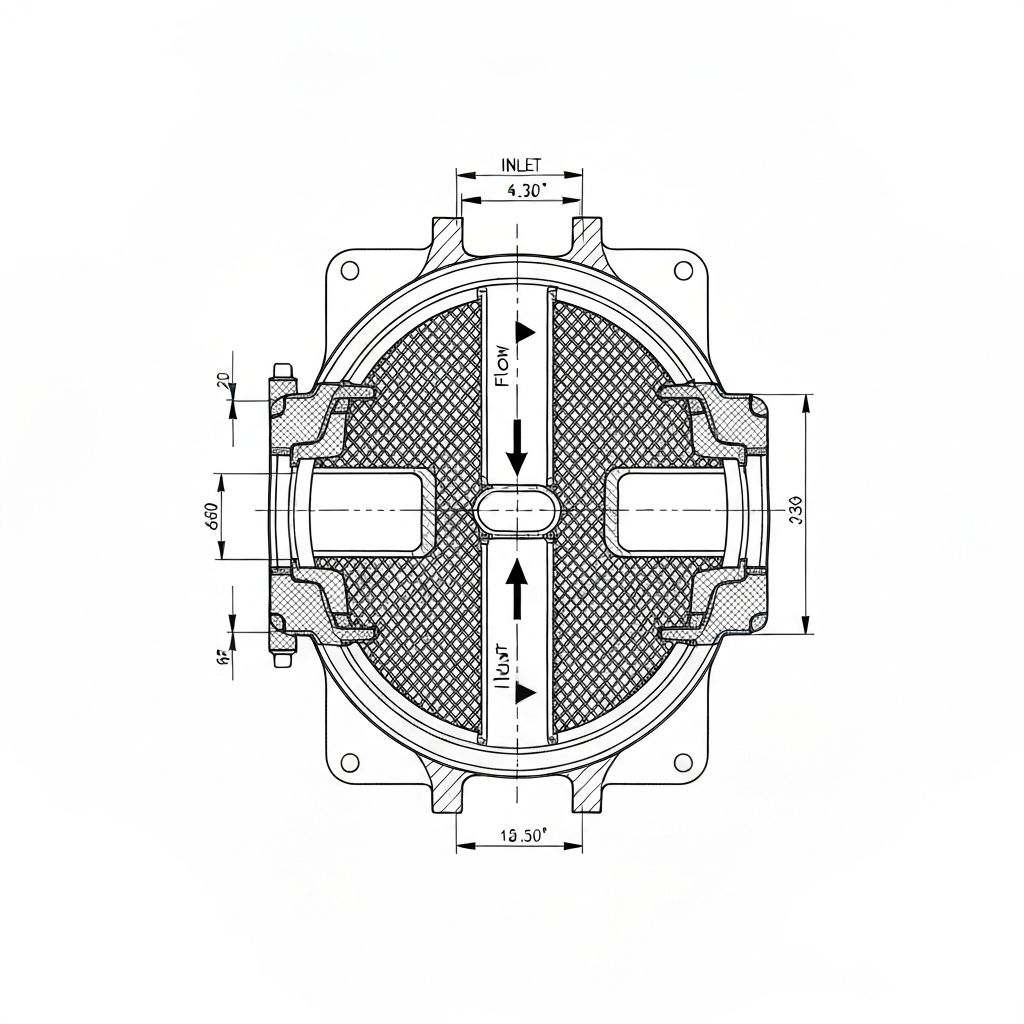

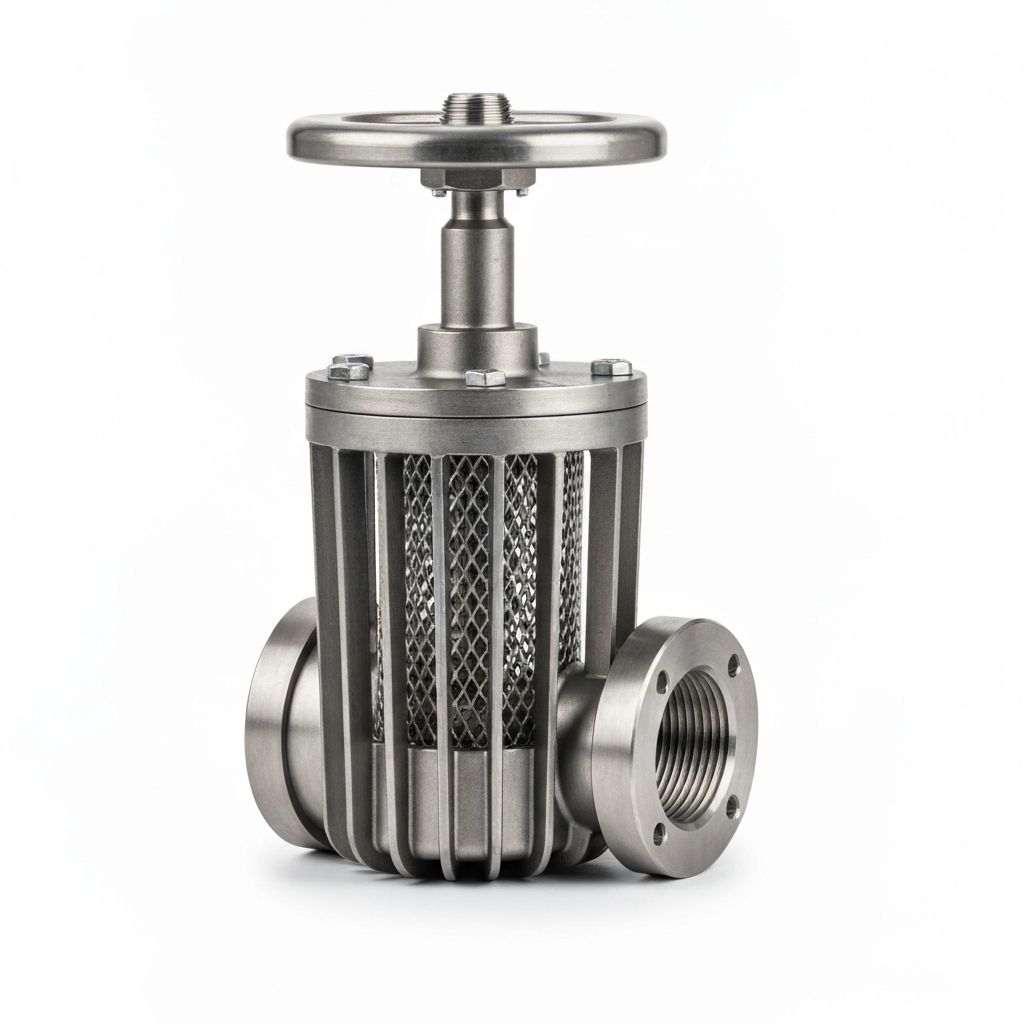

Military Simplex Basket Strainers

Military simplex strainers are used to remove damaging debris from liquid flow that can be interrupted for cleaning baskets, in a batch process, etc. Military simplex basket strainers are designed for an open area straining ratio of at least 6:1, which means less operating costs to clean the baskets. The heavy-duty wall thickness offers lower life cycle costs.

Staples & Pfeiffer military simplex strainers can be supplied in ANSI, DIN, or Navy Drilled to MIL-F-20042D flanges. Material can be supplied in bronze, aluminum bronze, steel, and stainless steel. Our military automated strainers have been shock tested to MIL-S-901D.

Material
Bronze / SS / Steel
Size Range
1/2" to 16"
Strain Ratio
6:1 Open Area
Compliance
MIL-S-901D
Standard Product, Pressure Ratings and Flow Rates

Note: Pressure ratings shown are for maximum temperature of 100°F for steel and stainless steel and 150°F for cast iron and bronze. Contact the factory for higher temperature.

Strainer TypeFlow RateCast IronCast SteelStainless SteelCast BronzeCarbon Steel (CB)
GPMliter/minNPT PSI BARClass 125 PSI BARClass 250 PSI BARNPT PSI BARClass 150 PSI BARClass 300 PSI BARClass 150 PSI BARClass 300 PSI BARClass 150 PSI BARClass 300 PSI BARClass 150 PSI BARClass 300 PSI BARANSI 150 PSI BARAWWA 125 LW PSI BAR
1-1/2" & 2" TS10740512.117512.119.628519.627519.022015.2
2-1/2" & 3" TS15960212.119.627519.022015.2
2" Angle10740517512.128519.627519.022015.2
2-1/2" Angle14554917512.128519.6275220
2-1/2" D-Type19373017512.128519.627519.022015.2
3" Angle19071917512.128519.627519.022015.2
3" D-Type290109817512.128519.627519.022015.2
4" D-Type354134017512.128531.027519.045031.022015.245031.0
6" D-Type842318735024.128531.045031.045031.022015.245031.0
8" D-Type1464554117512.135024.128519.045031.022015.245031.0
10" D-Type2013761917512.135024.128519.045031.022015.245031.0
12" D-Type2623992817512.128531.045019.045031.022015.245031.0
14" Q-Type42701616215010.315010.3
16" Q-Type53682031815010.315010.3
20" H-Type79303001515010.315010.3
14" WSA427016162755.2
16" WSA536820318755.2
20" WDA793030015755.2
24" WDA1098041555755.2
30" WDA164706233975

Related Products

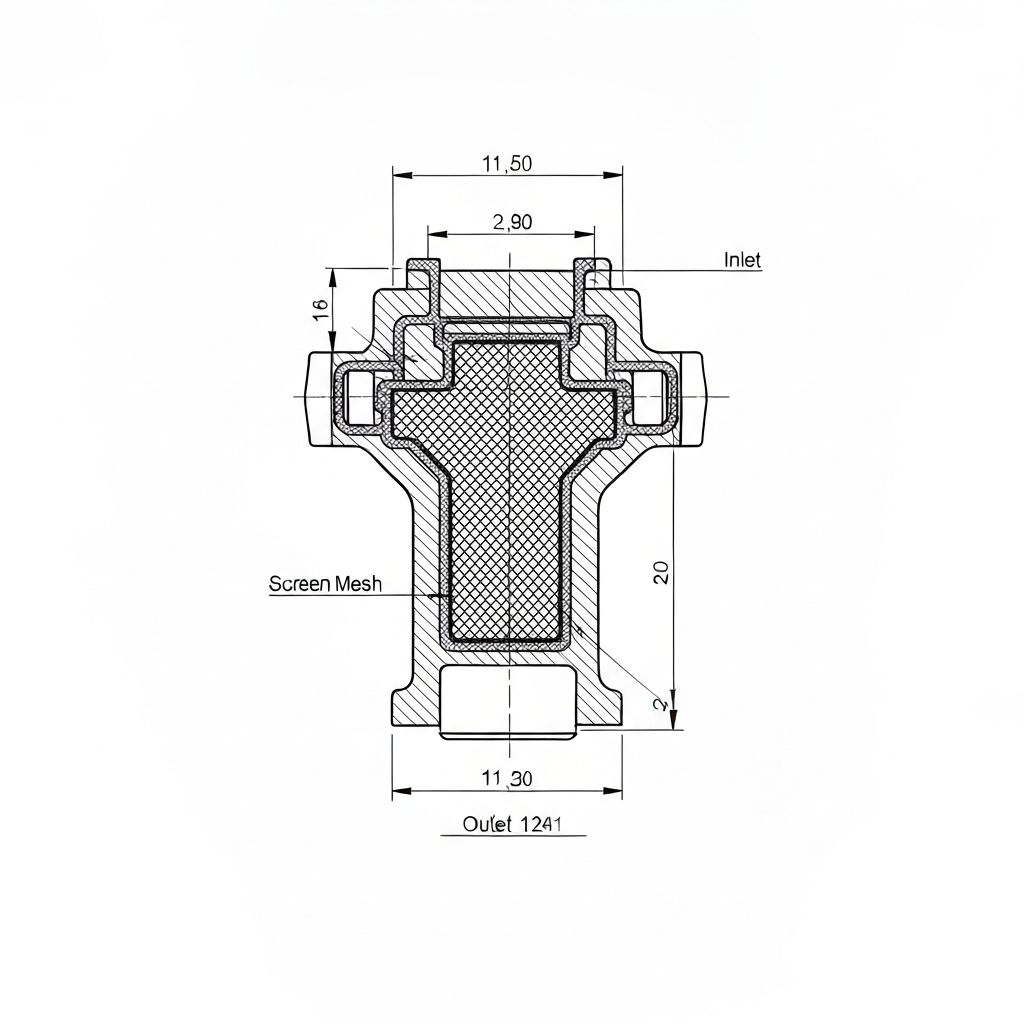

Military Y Strainers

Military Y Strainers

Y-strainers are used to remove solids from liquid, gas, or steam applications in small volumes.

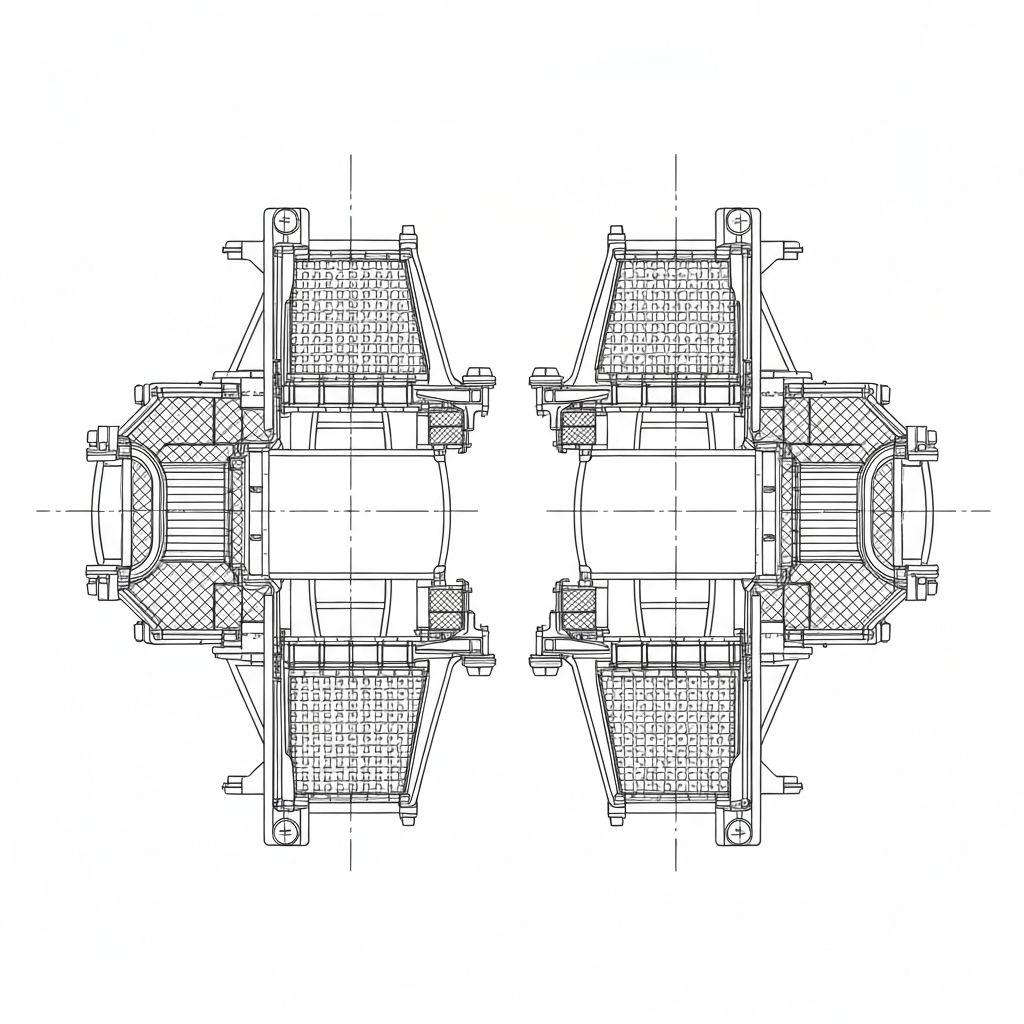

Military Duplex Basket Strainers
